Product Description:
The flexible feeding mechanism of voice coil motor solves the feeding problem that cannot
This motor is made of materials with high strength and good stability. Short response time, high vibration frequency, good consistency and stability. With special drive control technology, parts can move forward and backward, turn over, disperse and converge.
The feeding mechanism is integrated with adjustable backlight, which can complete vibration feeding, automatic control by visual system, and automatic control by machine picking system.

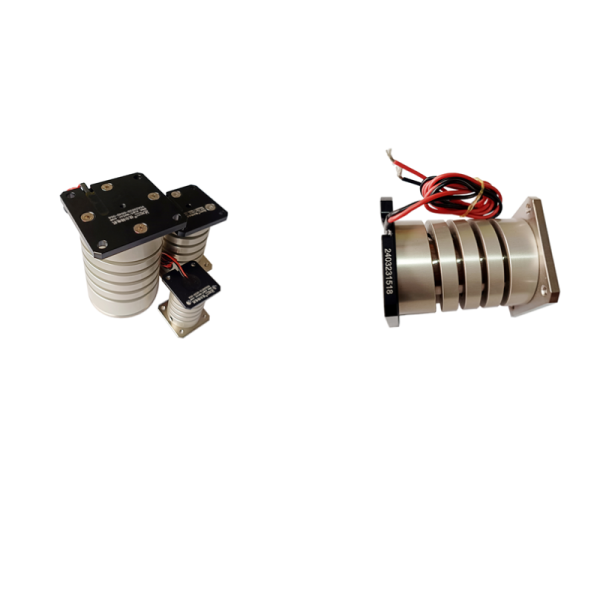

The SUPTMOTION VCAZ Series Micro Positioning Voice Coil Motor is engineered for precision inspection systems that require extremely accurate and stable motion control. Many inspection applications such as optical metrology, semiconductor measurement, and precision surface inspection require motion systems capable of achieving micron-level positioning accuracy.
The VCAZ Series linear voice coil motor provides an advanced direct drive motion solution that eliminates traditional mechanical transmission components. By using electromagnetic force to generate linear movement, the actuator delivers smooth motion with no backlash and minimal friction. This significantly improves positioning accuracy and motion stability compared with conventional linear actuators.
Because of its high precision, high reliability, and long service life, the VCAZ Series voice coil motor is widely used in precision inspection equipment, optical measurement instruments, and advanced metrology systems.
Features:

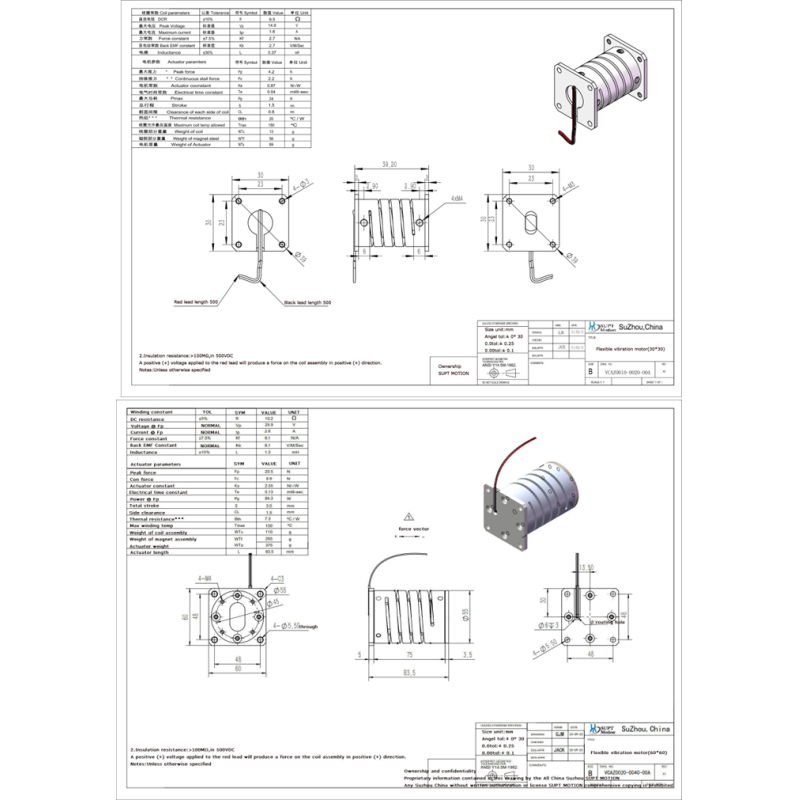

Product Parameters:
| Model Number |
VCAZ0020-0040-00A |
| Winding constant |
VALUE |
UNIT |
| DC resistance |
10.2 |
Ω |
| Voltage @ Fp |
25.9 |
V |
| Current @ Fp |
2.6 |
A |
| Inductance |
1.3 |
mH |
| Peak force |
20.5 |
N |
| Continuous Force |
8.9 |
N |
| Actuator constant |
2.55 |
Ka |
| Power @ Fp |
65.3 |
W |
| Total stroke |
3 |
mm |
| Max winding temp |
150 |
ºC |
| Actuator weight |
110 |
g |
| Model Number |
VCAZ0010-0020-00A |
| Winding constant |
VALUE |
| DC resistance |
9.5 |
| Voltage @ Fp |
14.8 |
| Current @ Fp |
1.6 |
| Inductance |
0.37 |
| Peak force |
4.2 |
| Con force |
2.2 |
| Actuator constant |
0.87 |
| Power @ Fp |
24 |
| Total stroke |
1.5 |
| Max winding temp |
150 |
| Actuator weight |
69 |
Applications:
1.Precision inspection systems
2.Optical metrology equipment
3.Surface inspection machines
4.Semiconductor measurement systems
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry |
| injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
